Product List
-
Reusable Hose Fitting
00518
SAE 100 R5
FERRULE FOR SAE 100 R5 HOSE
P/N. HOSE BORE DIMENSIONS DN DASH L S 00518-04 5 4 28 17 00518-05 6 5 30.5 19 00518-06 8 6 33 22 00518-08 11 8 42 24 00518-10 13 10 45.5 30 00518-12 16 12 53.5 32 00518-16 22 16 42 36 00518-20 28 20 44.5 46 00518-24 35 24 47 50 00518-32 46 32 57 65 15618-R5
SAE 100 R5
NPT MALE FOR SAE 100 R5 HOSE
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH S1 15618-02-04(R5) Z1/8"X27 5 4 12 15618-04-04(R5) Z1/4"X18 5 4 17 15618-04-06(R5) Z1/4"X18 8 6 17 15618-06-05(R5) Z3/8"X18 6 5 19 15618-06-06(R5) Z3/8"X18 8 6 19 15618-08-08(R5) Z1/2"X14 11 8 22 15618-12-10(R5) Z3/4"X14 13 10 30 15618-12-12(R5) Z3/4"X14 16 12 30 15618-16-16(R5) Z1"X11.5 22 16 36 15618-20-20(R5) Z1.1/4"X11.5 28 20 46 15618-24-24(R5) Z1.1/2"X11.5 35 24 50 15618-32-32(R5) Z2"X11.5 46 32 65 12618-R5
BSP MALE 60 CONE SEAT
P/N. THREAD E HOSE BORE DIMENSIONS DN DASH S1 12618-04-04 1/4"X19 5 4 17 12618-06-06 3/8'X14 8 6 22 12618-08-08 1/2"X14 11 8 24 12618-10-10 5/8"X14 13 10 30 12618-12-12 3/4"X14 16 12 32 12618-16-16 1"X11 22 16 36 12618-20-20 1.1/4"X11 28 20 46 12618-24-24 1.1/2"X11 35 24 50 12618-32-32 2"X11 46 32 65 22618D(R5)

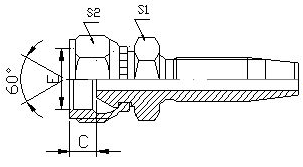

BSP FEMALE 60 CONE
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S1 S2 22618D-04-04(R5) 1/4"X19 6 4 5.5 19 19 22618D-06-05(R5) 3/8"X19 8 5 6.5 22 22 22618D-06-06(R5) 3/8"X19 10 6 6.5 22 22 22618D-08-08(R5) 1/2"X14 12 8 8 27 27 22618D-10-10(R5) 5/8"X14 16 10 10.5 27 30 22618D-12-12(R5) 3/4"X14 20 12 11.5 32 32 22618D-16-16(R5) 1"X11 25 16 11.5 41 41 22618D-20-20(R5) 1.1/4"X11 32 20 12 46 50 22618D-24-24(R5) 1.1/2"X11 40 24 13 50 55 16718-R5
JIC MALE 74 CONE
P/N. THREAD HOSE BORE DIMENSIONS DN DASH C S 16718-04-04 7/16"X20 5 4 14 17 16718-05-05 1/2"X20 6 5 14.2 19 16718-06-06 9/16'X18 8 6 15.7 22 16718-08-08 3/4"X16 11 8 17 24 16718-10-10 7/8"X14 13 10 19 30 16718-12-12 1.1/16"X12 16 12 19 32 16718-16-16 1.5/16"X12 22 16 22 36 16718-20-20 1.5/8"X12 28 20 22 46 16718-24-24 1.7/8"X12 35 24 24 50 16718-32-32 2.1/2"X12 46 32 24 65 17818-R5
SAE MALE 90 CONE
P/N. THREAD E HOSE BORE DIMENSIONS DN DASH C S1 17818-04-04 7/16"X20 6 4 14 14 17818-05-05 1/2"X20 8 5 14.2 14 17818-06-06 5/8"X18 10 6 15.7 17 17818-08-08 3/4"X16 12 8 17 22 17818-10-10 7/8"X14 16 10 22 24 17818-12-12 1.1/16"X12 20 12 22.4 27 26718D(R5)
JIC FEMALE 74 CONE SEAT
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S1 S2 26718D-04-04(R5) 7/16"X20 5 4 8.5 14 17 26718D-05-05(R5) 1/2"X20 6 5 9.5 14 17 26718D-06-06(R5) 9/16"X18 8 6 9.5 17 19 26718D-08-08(R5) 3/4"X16 11 8 10 22 24 26718D-10-10(R5) 7/8"X14 13 10 11 27 27 26718D-12-12(R5) 1.1/16"X12 16 12 13.5 32 32 26718D-16-16(R5) 1.5/16"X12 22 16 14.5 38 41 26718D-20-20(R5)W 1.5/8"X12 28 20 15.5 41 50 26718D-24-24(R5)W 1.7/8"X12 35 24 18.5 46 55 26718D-32-32(R5)W 2.1/2"X12 46 32 24.5 65 75 Note: apply to SAE 100 R5 hose
26798(R5)

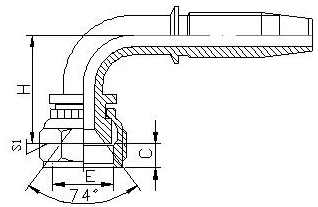

SAE FEMALE 74 CONE SEAT
PA/RT NO. TH/READ E HOSE BORE DIMENSIONS DN DASH C H S1 26798D-04-04(R5) 7/16"X20 5 4 8.5 33.5 14 26798D-05-05(R5) 1/2"X20 6 5 9.5 37 14 26798D-06-06(R5) 5/8"X18 8 6 10 39.3 17 26798D-08-08(R5) 3/4"X16 11 8 11 47.5 19 26798D-10-10(R5) 7/8"X14 13 10 11 52.5 24 26798D-12-12(R5) 1.1/16"X14 16 12 13.5 63.5 27 26798D-16-16(R5) 1.5/16"X12 22 16 14.5 70 32 26798D-20-20(R5)W 1.5/8"X12 28 20 15.5 82.5 38 26798D-24-24(R5)W 1.7/8"X12 35 24 18.5 97.5 46 26798D-32-32(R5)W 2.1/2"X12 46 32 24.5 118.8 60 Note: Apply to SAE 100 R5 hose
27818D(R5)
SAE FEMALE 90 CONE SEAT
PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S1 S2 27818D-04-04(R5) 7/16"X20 5 4 9 14 17 27818D-05-05(R5) 1/2"X20 6 5 9 14 17 27818D-06-06(R5) 5/8"X18 8 6 11.3 17 19 27818D-08-08(R5) 3/4"X16 11 8 10.5 22 24 27818D-10-10(R5) 7/8"X14 13 10 12 27 27 27818D-12-12(R5) 1.1/16"X14 16 12 14.3 32 32 Note: apply to SAE 100 R5 hose
-
